Global Steel has a renowned name in the industry in terms of being a major manufacturer, supplier, stockholder, and exporter of high-class quality Short Radius Elbows. These important pipe fittings play a crucial role in a diverse set of industries such as oil and gas, petrochemicals, power generation, chemical processing industries, and water treatment plants. Understanding the importance of reliable and efficient flow systems, at Global Steel we design and manufacture Short Radius Elbows with great accuracy to deliver superior performance and resistance to corrosion and temperatures that can be extreme.

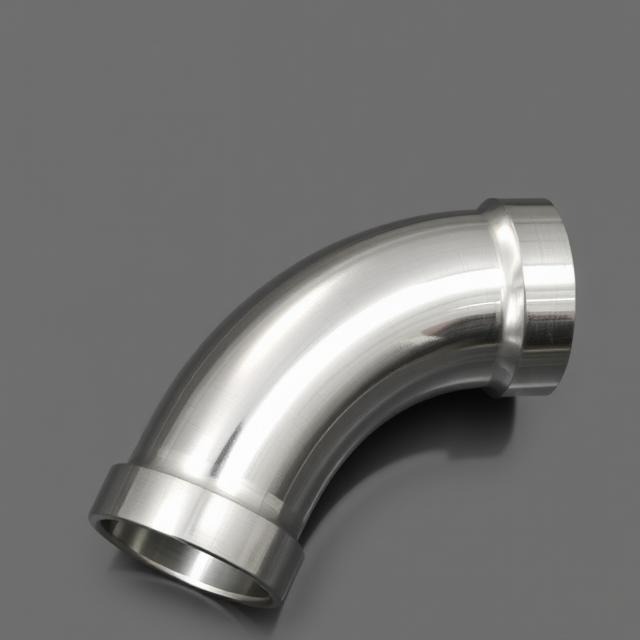

Short Radius Elbow, Short Radius Elbow Manufacturers, Short Radius Elbow Suppliers, Short Radius Elbow Stockists, Short Radius Elbow Exporters
A Short Radius Elbow is most often employed to rotate the direction of flow in piping systems by 45 and 90 degrees with a higher bending radius which decreases the pressure loss and lowers the chance of erosion and turbulence in the pipeline. Our Short Radius Elbows come in different sizes and thicknesses and can be produced in stainless steel, carbon steel, alloy steel, and other custom sizes according to the wishes of clients. Each product of Global Steel is in accordance with national and international standards such as ASTM, ASME, ANSI, DIN, and EN to be used in any working environment with reliability and compliance.
As a quality-oriented organization, Global Steel carries out strict measures of quality controls in every phase of production—right from raw material sourcing to inspection of the finished products—utilizing the most advanced technologies and inspection equipment available today. Our Short Radius Elbows are renowned internationally because of their precise measurements, strength, surface finish and long lifespan. Maintaining a robust inventory and efficiently maintained logistics base, we guarantee swift delivery of products to clients in various parts of the world, including the Middle East region, Europe, Asia and the Americas.
Short Radius Elbow Manufacturers in India, Short Radius Elbow Suppliers in India, Short Radius Elbow Stockists in India, Short Radius Elbow Exporters in India
Our skilled engineers, technicians, and customer service representatives closely work with clients in order to deliver tailored solutions to particular application requirements. For high-pressure pipelines and complex industrial piping systems, Global Steel is a reliable partner to supply premium Short Radius Elbows to guarantee safe and efficient operation. With a focus on excellence, innovation, and customer satisfaction, we remain the industry benchmark in the piping component business.
Short Radius Elbow Manufacturers in Mumbai, Short Radius Elbow Suppliers in Mumbai, Short Radius Elbow Stockists in Mumbai, Short Radius Elbow Exporters in Mumbai
Short Radius Elbow Specifications
| Specification | Details |
|---|---|
| Product Name | Short Radius Elbow |
| Size Range | 1/2" to 48" (Seamless & Welded) |
| Wall Thickness | Sch 5, Sch 10, Sch 20, Sch 40, Sch 80, Sch 160, Sch XXS |
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Duplex, Super Duplex |
| Standards | ASME B16.9, ANSI B16.9, MSS SP-43, DIN, EN |
| End Connection | Buttweld (Beveled Ends as per ASME B16.25) |
| Surface Finish | Black Paint, Anti-rust Oil, Galvanized, or as required |
| Testing | Hydrostatic Testing, PMI, Ultrasonic Testing, Radiography |
| Applications | Oil & Gas, Petrochemical, Power Plants, Water Treatment, Shipbuilding |
| Certification | ISO, API, PED, Mill Test Certificates (MTC) EN 10204 3.1/3.2 |
Material of Short Radius Elbow
| Stainless Steel | Grade 304, 316, 321, 347 |
|---|---|
| Carbon Steel | ASTM A106, A53, A333 |
| Alloy Steel | ASTM A335 P5, P9, P11, P22 |
| Duplex Steel | UNS S31803, S32205 |
| Super Duplex Steel | UNS S32750, S32760 |
| Nickel Alloys | Inconel, Monel, Hastelloy |
Dimensions of Short Radius Elbow
| Size (Inches) | Nominal Bore (NB) | Outside Diameter (OD) | Wall Thickness (WT) | Center to End (C to E) | Radius (R) |
|---|---|---|---|---|---|
| 1/2" | 0.84" | 1.315" | 0.109" | 1.44" | 2.26" |
| 3/4" | 1.05" | 1.660" | 0.113" | 1.63" | 2.50" |
| 1" | 1.315" | 2.065" | 0.140" | 2.00" | 3.00" |
| 2" | 2.375" | 2.875" | 0.140" | 3.00" | 4.00" |
| 3" | 3.500" | 4.000" | 0.250" | 4.00" | 6.00" |
| 4" | 4.500" | 4.500" | 0.280" | 5.00" | 7.00" |
| 6" | 6.625" | 6.625" | 0.280" | 6.00" | 9.00" |
